Isabella Ambassador Dawn Full Caravan Awning

Product Information

The Ambassador is Isabella’s all time best-selling awning and has been in their range for over 30 years. Designed to be used as a touring or seasonal awning, Isabella has used their premium Dawn fabric to remain relatively light in weight and durable in lifespan. A Isaroof Acrylic material creates a comfortable environment inside the awning by being breathable and offering a standard depth of 250cm. Ventilation is a key aspect of the Ambassador as it has mesh panels built into all three sides. The Apex front vent twinned up with side mesh windows increases airflow while giving a barrier against insects. The sides have a door at each end of the panel to give multi access when the weather turns.

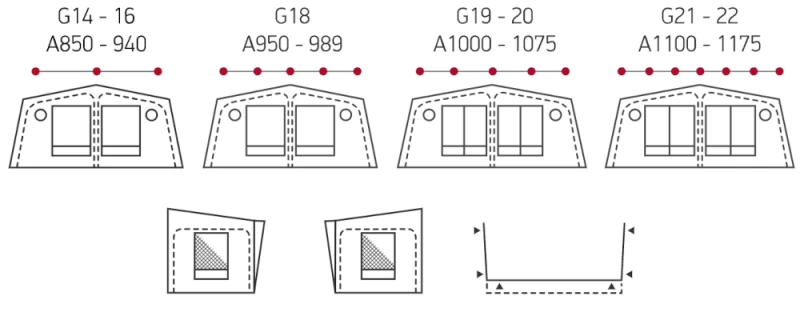

There are three options when it comes to frames: a 25mm Galvanised Zinox Steel Frame with T-Rex locking clamps; the second is a 26mm CarbonX frame which is reinforced with Fibreglass and uses the IsaFix locking clamps. Both of these frames are perfect for touring or seasonal use, but the CarbonX will be about a 1/3 of the weight of steel without losing any sturdiness. The third option is a 32mm MegaFrame with welded corners and MegaFix dual wingnuts, it would only be recommended for seasonal use as it is a bit heavier. Additional roof rafter poles are supplied as Isabella see fit and they always give you as many as you need (even for a season pitch). (Please see the product images for an explanatory diagram).

The Ambassador has lots of touches which are designed to increase the lifespan of the awning; reinforced pegging points and corners come as standard to make the awning last the test of time. The roof seams are triple folded and double stitched to keep the elements out. An internal PVC mud-skirt is easy to clean and can be overlapped with an optional carpet to provide a solid seal. All of the front & side panels can be folded down to form a veranda or be removed completely for ease of pitching. A front canopy which goes down to the ground protects from rain coming into the front of the awning and a horizontal roof pole retains stability and completely tensions the fabric.

The Ambassador is really flexible and if needed has a whole host of optional extras available to make a home away from home; some of these extras include an Annexe for storage or extra sleeping options: Full front canopy for even more rain protection or a ‘Cosy Corner’ to shelter the front door. A canopy strip on both side of the Ambassador enables you to add some smaller extensions like Door Canopy or a roof Gutter.

The Ambassador is truly the perfect awning for the customer who wants to buy the best; buy it once and have it for many, many years to come.

*Please be aware that due to the extensive range of sizes and colours that Isabella has in their awnings we are sometimes are unable to have everything in stock. This means we will accept your order and the awning may be shipped direct by Isabella.

Product Details

• Depth: 250cm
• Fitting Height Range: 235-250cm
• A – Measure: from 850 to 1175cm
• G – Frame Measure: G14 – G22
• Weight: 55.81kg (based upon a size 1025 awning with a Zinox frame)
• Minimum Weight: 26.81kg (based upon a size 1025 awning)

Features

• Isaroof 285g/m² Roof fabric – UV-resistant polyester textile, treated with triple layers of breathable acrylic
• PVC 380g/m² Base Material
• Isacryl 295g/m² Side/Tent Material – particularly breathable material
• Frame Option 1: Strong Zinox tubular Steel Frame (25mm) with T-Rex locking clamps
• Frame Option 2: Lightweight CarbonX Fibreglass Frame (26mm) with IsaFix locking clamps
• Frame Option 3: Seasonal Steel MegaFrame with welded corners and MegaFix double wingnuts
• Internal Mud-flap to help keep out the weather
• Traditional design which maximises internal space
• Heavy-Duty PVC windows with traditional styled privacy curtains
• Mesh Ventilation windows on both sides with zip down PVC covers
• Front Apex vent to increase ventilation into the awning
• Triple folded and double stitch roof seams
• Oversized Teeth counted zips (Spiral chain for smooth action)
• Adjustable frame for easier pitching & better on uneven ground

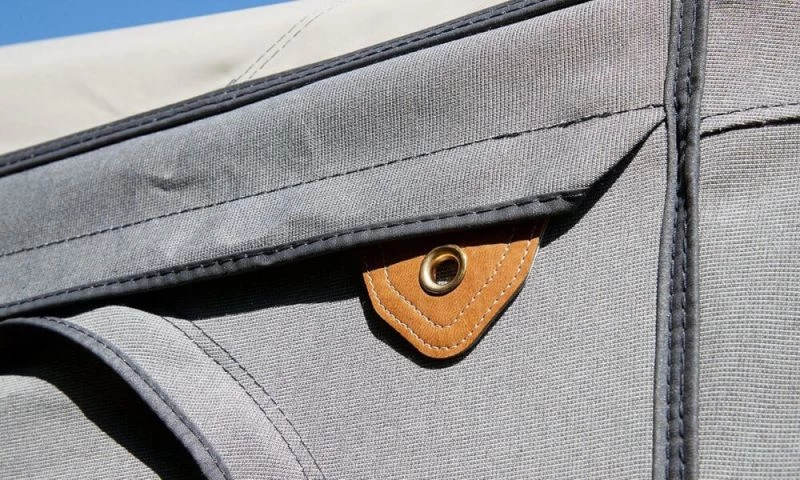

• Flag-stitched Reinforced strain points (on pegging points and frame joints)
• Adjustable pegging heights perfect for dealing with uneven ground
• Traditional curtains with reversable runners to have pattern inside or out
• Made in Europe
• Isaflex pegging points
• Lower guyrope points for stormier conditions (guyropes not-included)
• Regulator tab to lock frame to the canvas & allow 20cm of adjustment
• Oversize storage bag with carry handles
• Door Tie with press studs
• Double wing internal skirt to ensure a great fit on all caravan shapes
• DropStop rain grommet are fitted to all rivets in the roof
• Substantial four-way zips with large pulleys
• FixOn screwless Brackets designed for better tensioning with easy positioning
• Front & Side Panel can be completely removed to reduce the pull through weight
• Two Side panels can be switched to move the side door & window
• Full Front canopy to stop water dripping into the front of the awning
• A Veranda pole comes included with the awning
• Optional Annexe, Cosy Corner, Eclipse FSC special, Net (Mesh) Front Panel, Net (Mesh) Side, extra Veranda Pole, Roof Liner, Gutter & Storm Securing Set available
• PVC draught skirt, Typhoon Storm sashes, Wheel Arch Cover, Pegs & Peg Remover included

Tech Spec

Brand	Isabella
Frame Type	Poled
Attaching Height	235-250cm
